Thermal fuses and detectors (HDM-series)

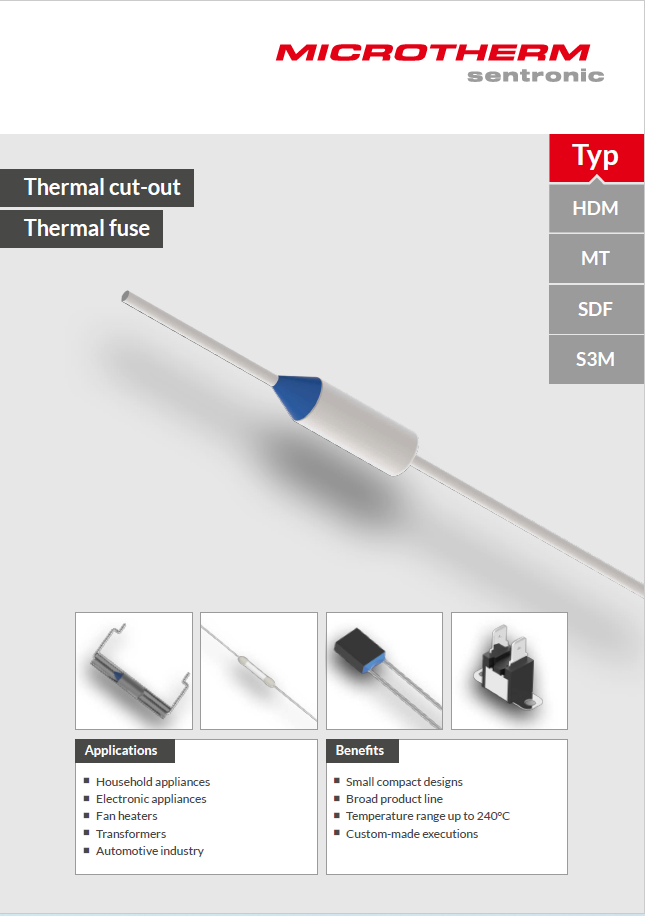

Data sheet

You will receive a complete overview of all variations in connection with all the technical data in the following data sheet:

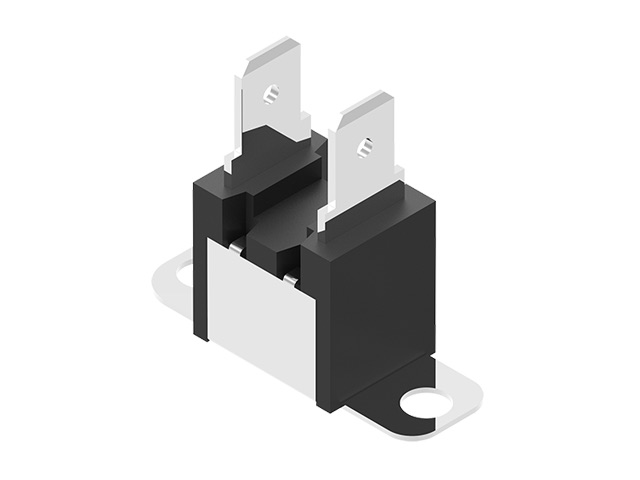

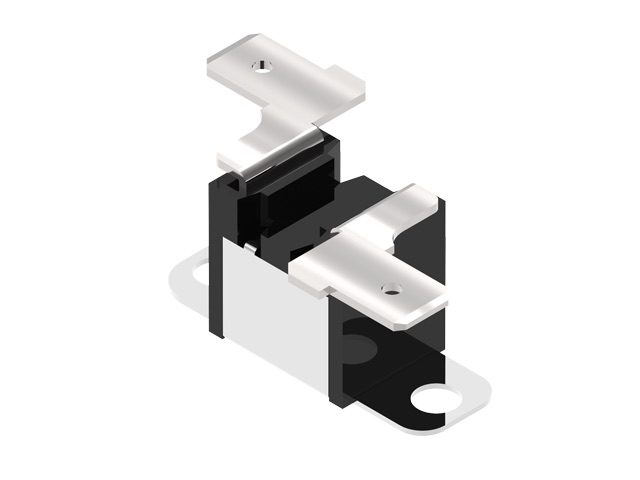

The fuses of the HDM series are particularly robust units and are already assembled solutions: they offer direct mounting through screw holes on the floor and simple electors. Contact by Faston Connector (horizontal, vertical).

Combined with a current load capacity up to 15 A and temperatures up to 190°C, they are easy to integrate in many technical applications and represent a very safe thermal protection even of complex devices.

  • rugged housing
  • wide range of current and temperature
  • assembled for easy assembly and electr. connection
  • protection against overheating
Application areas
  • electrical equipment and Equipment
  • tempered tools and devices
  • heating Registers
  • transformers
  • continuous heaters
  • hot water storage
