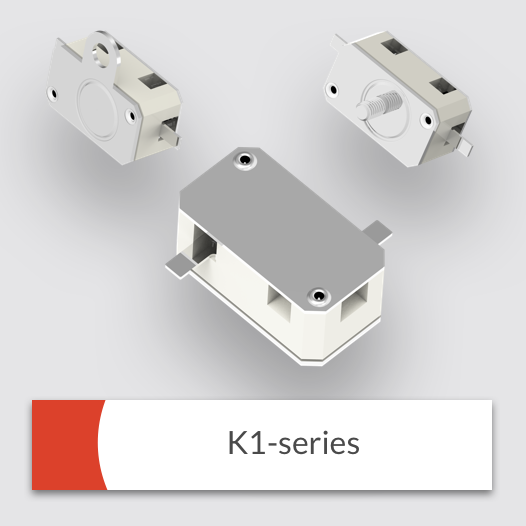

High temperature switch (K1)
The temperature limiter K1AV (NC) or K1AT (NO) is used at high temperatures between 200° C to 450° C.
Temp. range: 200 - 450°C
Current rating: up to 10 A
High temperature switch (K1)
High-temperature switches of the K1 type series operate in a current-independent manner, and measure the temperature by means of a thermo-bimetal snap-disc. After reaching the defined temperature, the switch opens or closes the circuit of the device to be protected. When the switch-back temperature is reached, the contact system automatically switches back.
- High temperature materials (ceramic, steel, mikanite)
- fixed set temperature
- automatic reset
- various connection possibilities
- Temperature limiter
- Temperature Controller
- Oil burner
- Welding / soldering equipment
- Ironing Stations
- Hotplates
- Warming plates
- Radiant warmers
- Heating tapes
