Enclosed temperature switches (B / F / T series)

Type series B, F and T switches protect your application as temperature limiters.

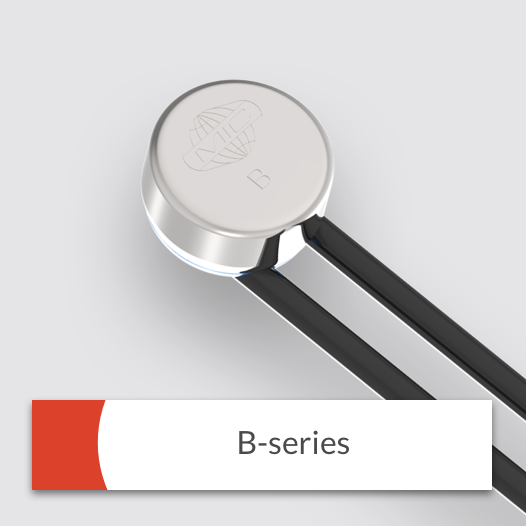

Alternativer Text

Temp. range: 70 - 190°C
Current rating: up to 10 A

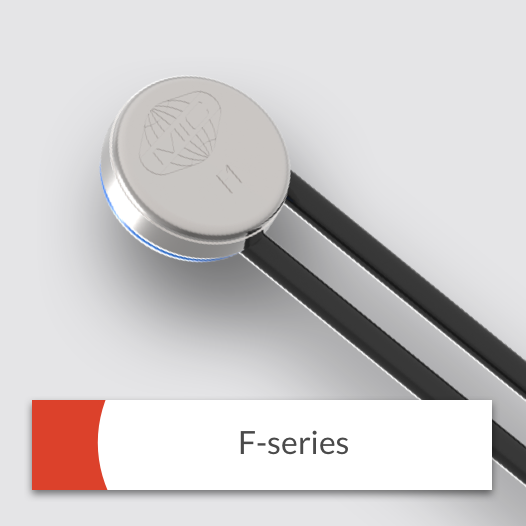

Alternativer Text

Temp. range: 70 - 190°C
Current rating: up to 3 A

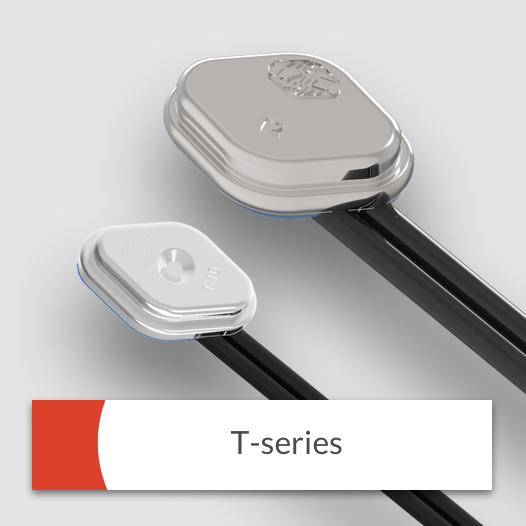

Alternativer Text

Temp. range: 50 - 180°C
Current rating: up to 6/20 A

General information

Closed temperature switches (B / F / T series)

Due to their small design, these switches are predestined for the installation in narrow conditions: Motor coils, transformers, chokes - additionally, in the fields of electronics, sensor technology and mechanical engineering.

The switches are certified for the current range up to max. 20A and temperatures up to 190° C.

The contacts can open or close when the response temperature is reached - depending on the application requirements.

Characteristics
  • High switching capacity
  • No vibrating noise
  • Small dimensions
  • Shock and vibration tested
  • Power insensitive
  • Gold contacts for a low current output
Functions
  • Thermal motor protection
  • Temperature limiter
Application areas
  • Motors
  • Transformers
  • Chokes, electronics
  • Sensors
  • Control Technology
